Minarc M 223P Auto GM (Euro torch) Package
  • Minarc M 223P Auto GM (Euro torch) Package - image 1

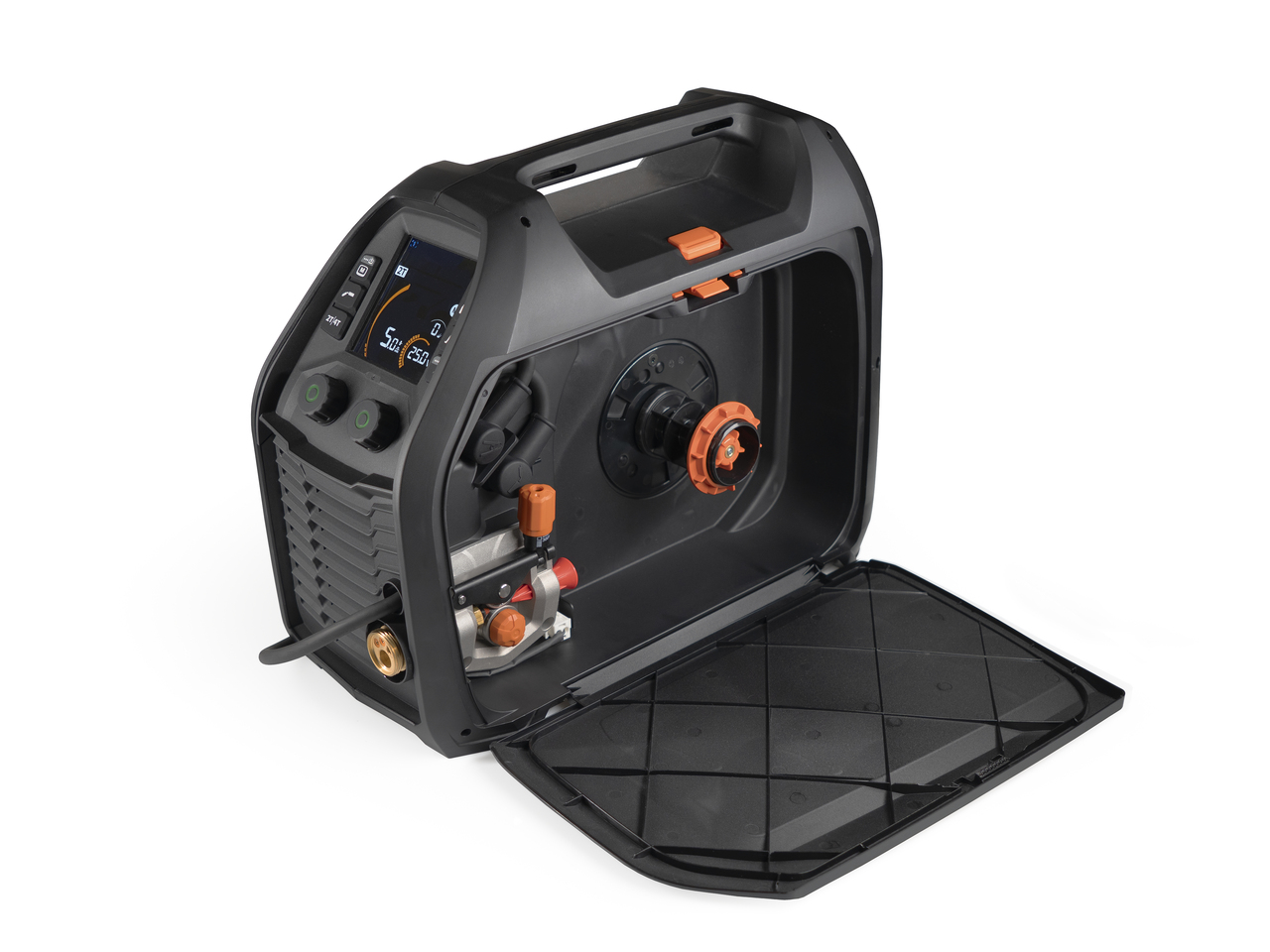

  • Minarc M 223P Auto GM (Euro torch) Package - image 2

Minarc M 223P Auto GM (Euro torch) Package

Product information

Part #: MIM223PGM

Minarc M 223P Auto GM Includes Plug-In Euro Style Torch, Earth Lead and 0.6/0.8mm Feed Roll.Premium portable 110/240V MIG/MAG welding machine providing 220 A @…

£1329.14 ex VAT

Key Features

Key Features

  • Technical data

  • Description

    • Value Mains connection voltage 220...240 V ±10 %

    • Mains connection voltage (MV low range) 110...120 V ±10 %

    • Mains connection phases 1~50/60 Hz

    • Mains connection cable type 3G, H07RN-F

    • Mains connection cable size 2.5 mm²

    • Rated maximum input power [S1max] 7 kVA

    • Mains fuse 16 A Mains fuse (@MV low range) 15 A



  • Output range, MIG 15 A / 11 V ... 220 A / 28 V

  • Output range, MIG (@MV low range) 15 A / 11 V ... 120 A / 23 V

  • Voltage adjustment range, MIG 10 ... 32 V

  • Power factor at rated maximum current [λ] 1

  • Efficiency at rated maximum current [η] 85 % EMC class A

  • Welding connection type

  • Built-in Wire feed mechanism

  • Single-motor, 2-roll Diameter of feed rolls 30 mm

  • Filler wire diameter, Fe 0.6 ... 1.2 mm

  • Filler wire diameter, Fe-MC/FC 1 ... 1.2 mm

  • Filler wire diameter, Ss 0.6 ... 1 mm

  • Filler wire diameter, Al 0.8 ... 1.2 mm

  • Wire feed speed 0.5 ... 18 m/min

  • Maximum wire spool weight 5 kg

  • Maximum wire spool diameter 200 mm

  • Operating temperature -20 ... 40 °C

  • Storage temperature -40 ... 60 °C

  • Recommended minimum generator power [Sgen] 8 kVA Degree of protection (fully installed) IP23

  • External dimensions, Length 460mm Width 221mm Height 365mm

  • Weight without accessories 12 kg

Downloads

Minarc M 223P Auto GM Includes Plug-In Euro Style Torch, Earth Lead and 0.6/0.8mm Feed Roll.

Premium portable 110/240V MIG/MAG welding machine providing 220 A @ 20% duty cycle from a 1-phase mains supply and weighs 12 kg.

Manual and synergic welding options available.

The power source can be used with a generator and it includes five memory channels.

Compatible with a wide range of materials, including steel (Fe), stainless steel (Ss), aluminum (Al), CuSi, Flux cored and Gasless filler wires.

Package includes power source, gas hose, drive rolls 0.6/0.8mm, shoulder strap, earth return, power cable plug, gun handle and plug in euro style welding torch.
