Part #: 0448350996
ESAB Rustler EM350 Water Cooled Pro Synergic PULSE Mig Package complete with Built-In Water Cooler, Drive rolls for 0.9/1.0 and 1.2 mm wire, 3m work lead, gas …
£2931.43 ex VAT
| Specifications | |
|---|---|
| Input Voltage | 400 V 15 %, 3 Φ, 50/60 Hz |
| Max Output | 350 A320 A |
| GMAW (MIG/MAG ) Welding Output | 350 A31.5 V @ 40 % Duty Cycle |
| SMAW/MMA (Stick) Welding Output | 320 A32.8 V @ 40 % Duty Cycle |
| Setting Range GMAW (MIG/MAG) SMAW/MMA (Stick) | 30-350 A (15.5-31.5 V) 20-320 A (20.8-32.8 V) |
| Open Circuit Voltage | 66.6 VDC 71.0 VDC |
| Power Factor at Maximum Current | 0.90 |
| Efficiency at Maximum Current | 89 % |
| Supply Plug | CEE16 |
| Operating Temp | -10 - +40 °C |
| MCableX | 4x2,5 mm2, 4 m |
| Metal | Stainless Steel|Mild Steel|Aluminum|Flux Cored |
| Wire Diameter (met) | 0.6-1.2 mm|0.8-1.2 mm |
| Wire Feed Speed | 1.5-22 m/min |
| rated kVA | 14.0 kVA |
| Recommended Generator | 17 kW |
| Enclosure Class | IP23 |
| Certification | CE/UKCA |
| Dimensions, L x W x H | 977 x 487 x 800 mm |
| Weight | 61 kg |

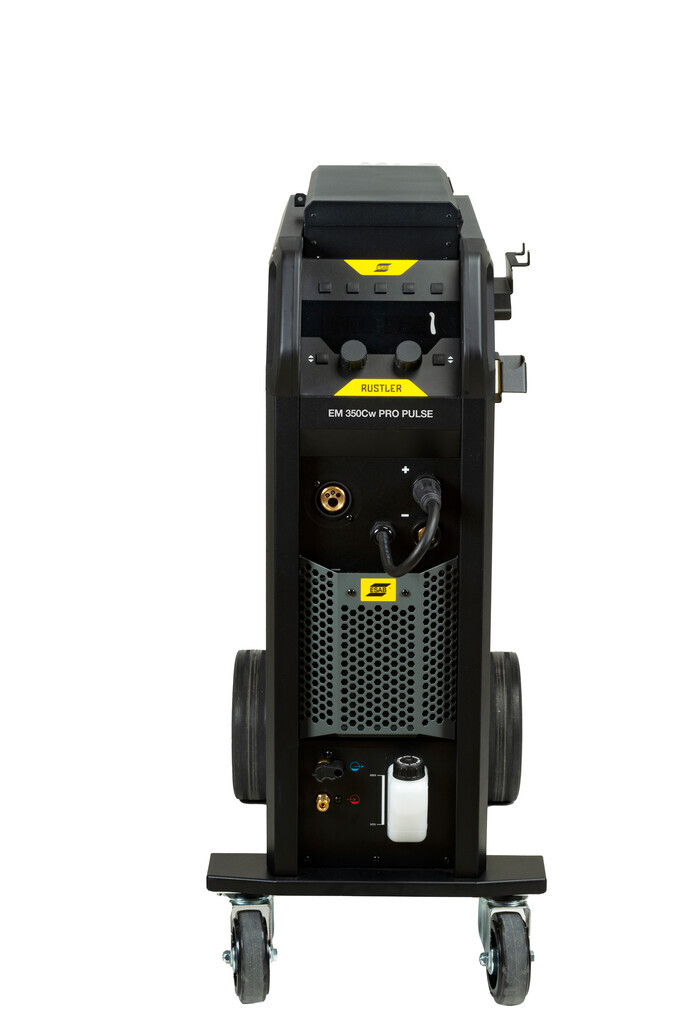

ESAB Rustler EM350 Water Cooled Pro Synergic PULSE Mig Package complete with Built-In Water Cooler, Drive rolls for 0.9/1.0 and 1.2 mm wire, 3m work lead, gas hose with quick connector and TB501 Water Cooled 4m Euro Mig Torch.
Rustler MIG PRO compact welding inverters are your solution of choice for the most common welding challenges. Equipped with the latest inverter technology, they combine low energy consumption with optimized welding performance.
Rustler is ready to weld most common base materials with optimized arc programs for carbon steel, stainless steel, aluminium, brazing and flux-cored wires. Smooth wire feed is delivered by a robust and reliable 4WD feeding mechanism. The synergic model allows operation by setting the material thickness to achieve perfectly balanced welding parameters, allowing even less experienced welders to produce optimal welds.
The reliable housing is further enhanced with a flexible accessories storage system, allowing users to store and protect additional tools as needed. Additional features include inspection window, internally lit-up compartment, torch holder and cable management for an efficient and comfortable working environment.
Pulse-Perfect Welding Performance
The Rustler Synergic Pulse takes MIG/MAG welding to the next level with adaptive pulsed-arc control that delivers cleaner, faster, and more consistent results across all materials.
Lower heat input minimizes distortion and burn-through - ideal for thin or heat-sensitive metals.
Reduced spatter means minimal cleanup, lower consumable wear, and longer torch life.
Superior bead appearance for high-value, visually appealing welds, especially on aluminium.
Higher deposition rates improve productivity and travel speed.
Stable, controlled weld pool enables out-of-position welding with precision.
Reduced welding fumes create a safer, cleaner work environment.
Optimized for Every Material
Purpose-built pulse programs ensure reliable performance across a range of applications.
Aluminium: Excellent thermal control prevents distortion or burn-through on high-conductivity materials.
Stainless Steel: Lower temperatures reduce expansion, distortion, and rust contamination.
Bronze/Brazing Wires: Perfect for thin galvanized panels and automotive bodywork where low-temperature joining is essential.
Mild Steel: Cleaner welds, reduced spatter, and smooth operation on thin or coated steels.

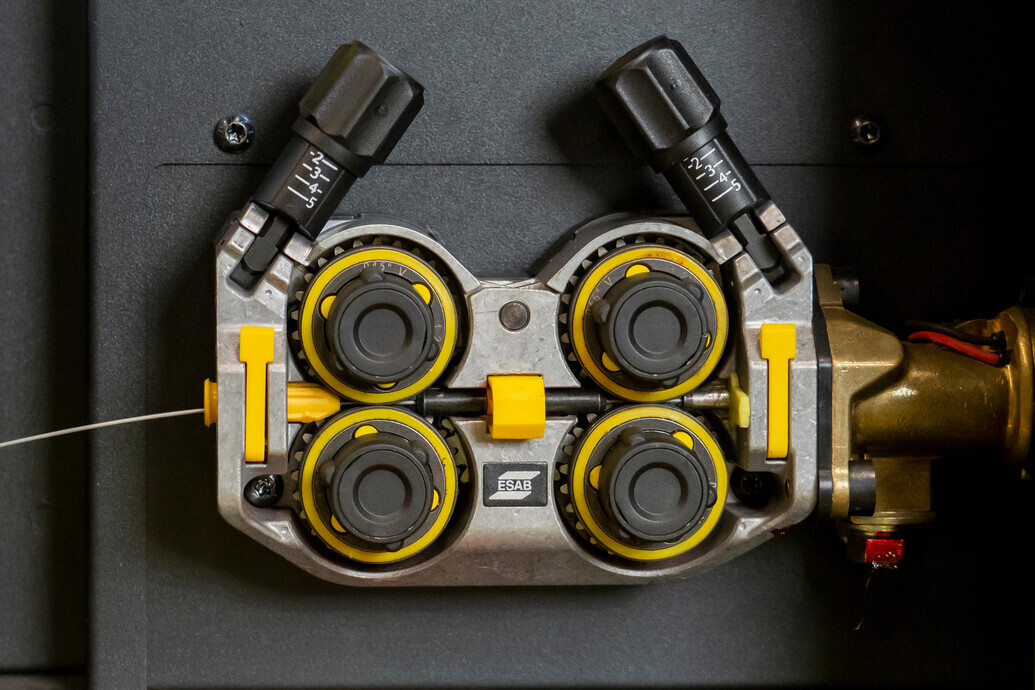

PreciDrive wire-feed system and adaptive pulse settings deliver stable performance across all wire types and diameters.
Rugged Industrial Design
Built for demanding environments, indoors or out.
Durable IP23-rated housing withstands shop and field conditions.
Integrated solid wheels and gas-cylinder support for easy mobility.
Inspection window, wire-inch, and gas-test functions simplify setup and maintenance.
Welding-chamber light enhances visibility during preparation and inspection.
Top storage tray, optional toolbox, gun rest, and cable/PPE hangers keep your workspace organized.
Smart and Simple Operation
Designed for productivity and ease of use — from setup to daily operation.
Bright, easy-to-read display with five quick-access job memories.
Fine-tune controls for inductance, trigger mode, burn-back, crater fill, and gas post-flow.
Manual, Synergic, and Pulse MIG modes - plus Spot MIG and MMA - for complete flexibility.
User can set the operating point based on either wire-feed speed or material thickness for optimal results.
Optional remote control on the torch increases flexibility and operator comfort.
Water Cooled for continuous heavy duty applications
