Esab Origo Mig 402cw Water Cooled Package

Origo™ Mig 402cw

Origo™ Mig 402cw is a sturdy and robust switching converter (chopper) power source intended for heavy duty MIG/MAG welding, MMA welding and air-arc gouging.

Well proven technology together with ESAB developed software provides high reliability and outstanding welding performance. A strong metal casing makes these units the perfect solution for harsh environments.

Easy to Use

The wide current and voltage range together with stepless, dial adjusted inductance make it easy to optimise settings for a wide variety of filler materials and gases.

The patented ELP Esab LogicPump automatically starts the cooling water pump in the machine when a water-cooled torch is connected to the OrigoFeed 304 Wire Feed Unit. This helps to eliminate the risk of overheating the welding torch and prevents costly repairs. When an air-cooled torch is used, the pump will automatically shut off.

The Origomig 402cw meets the demands of the cost-conscious fabricator for high productivity, versatility and high quality production with low overall welding costs. IP23 makes it a perfect solution for tough, outdoor working environments.

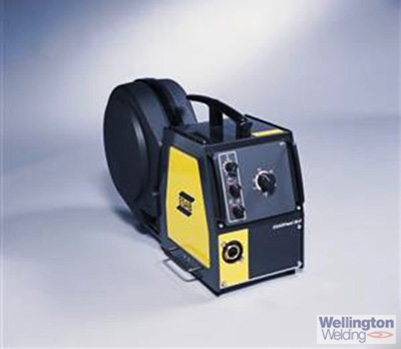

Origo™ Feed 304

• 2/4 stroke and creep start, simplifies start/stop and the gradual feed of the wire helps to optimise the starts.
• Crater filling, eliminates cracks and gives high quality welds.
• Adjustable burn-back time to correct stick-out and reduce wear of contact tips.
• Digital V/A meters.
• Quick connectors- shortest possible set-up times.
• ESAB LogicPump, ELP, secures automatic start of water pump by connection of a water cooled welding torch.
• TrueArcVoltage™ system, measures the correct arc voltage value independent of the length of the interconnection cable, return cable or welding torch.

Delivery includes:

• Origomig 402 water cooled power source with 5m mains cable (including plug for 400V).
• 4 Wheel Undergear.
• Earth return cable with clamp.
• Gas bottle platform.
• OrigoFeed 304w 4 roll wire feeder.
• 10m water-cooled interconections.
• PSF410w 4,5 water-cooled torch and instruction manual.

The whole package is covered by Esab's standard 2 year warranty (excludes torch).
